Data lineage in Power BI — from source to visual

Trace how data flows through your Power BI and Fabric tenant at every level of detail — server and database, table and view, and column-level from the semantic model down to the individual visual.

What Measure Killer covers

“Lineage” means different things at different zoom levels. A governance lead asking “what breaks if we retire this database?” needs a coarse, item-level answer. A developer asking “which source column actually feeds this one broken visual?” needs the finest grain possible.

Measure Killer traces dependencies at three granularities today, with a fourth in active development. Start broad at the Lineage tab, then narrow down as far as the question requires.

Server & database level — the Lineage tab

The Lineage tab is the top-down, item-level view. It’s populated automatically by a tenant-wide scan and traces every item from its data source through dataflows and semantic models to the reports, paginated reports, Excel files, and downstream models that consume it.

The Data sources view starts from every server, database, and file source in the tenant and shows what flows downstream from each. The Models and dataflows view starts from each model or dataflow and shows both directions — upstream sources and downstream consumers.

This is the level that answers “what depends on this server or database?” — the starting point for any impact analysis, migration, or retirement.

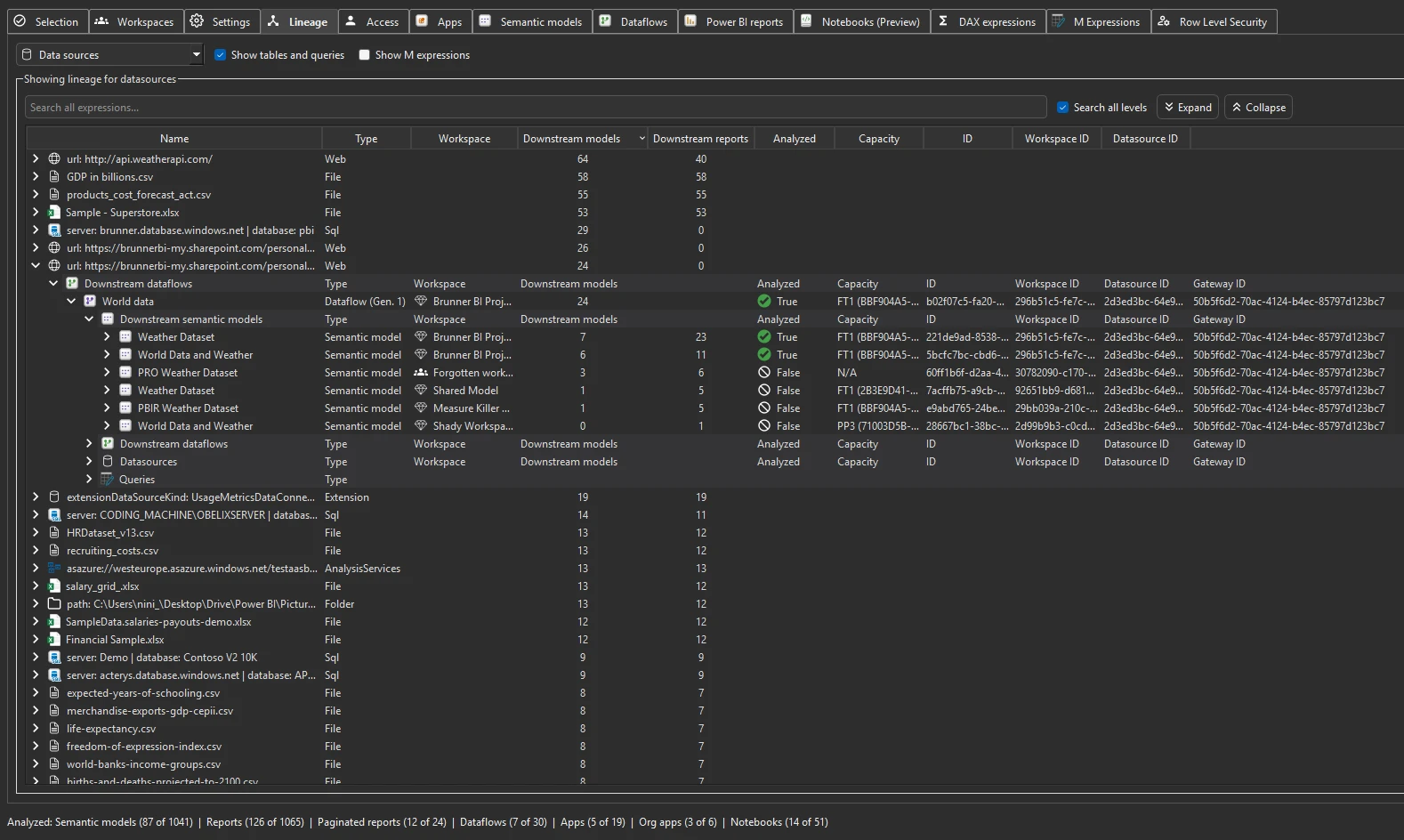

Lineage tab — data sources view, tracing each server and database to the downstream semantic models and reports that consume it

End-to-end lineage (the Lineage tab in detail)

Table & view level — M Expressions search

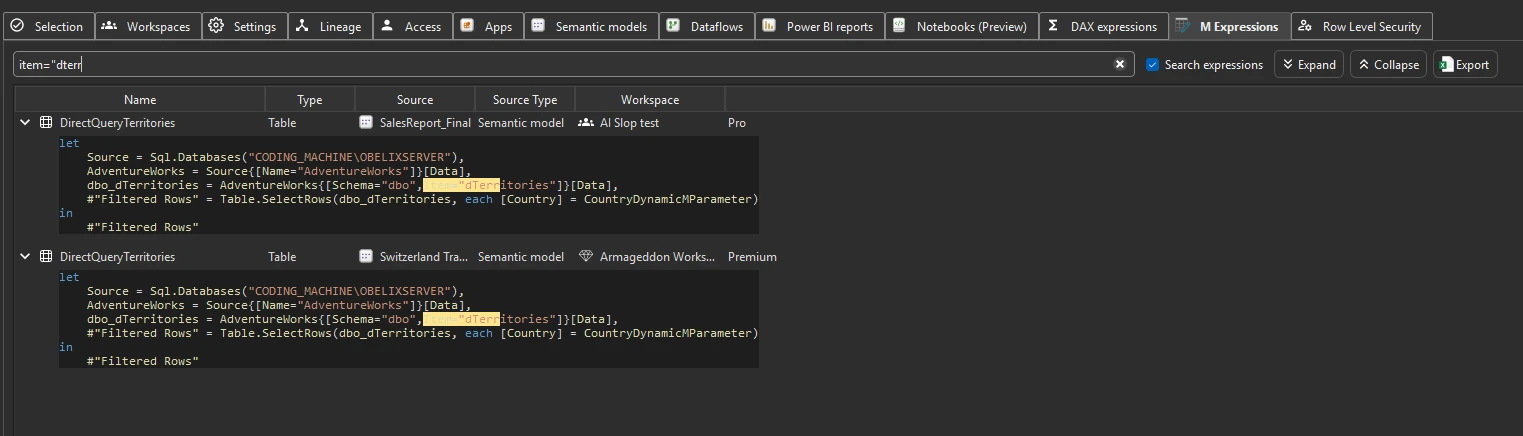

The Lineage tab tells you which models touch a data source. To go one level finer — which models touch a specific table or view — search the M Expressions tab.

Every model and dataflow’s Power Query (M) code is indexed after a Phase 2 scan. Search for a table or view name and you get every item whose queries reference it. This is how table- and view-level lineage works today: it’s the precise list you need before renaming or dropping a database object.

M Expressions search | Plan a database schema change

Column level — semantic model to visual (today)

Inside a scanned model, Measure Killer traces column-level lineage from the semantic model all the way down to the individual visual. Pick any column or measure and see every visual, filter, calculation group, RLS rule, and downstream report that references it — across all connected reports.

This is the Where-used detail view. It works in the free desktop edition against a single open model, and tenant-wide after a Phase 2 scan with a paid licence.

Where-used detail — every column and measure with the visuals, filters, and downstream reports that reference it

The same column-level analysis runs against Analysis Services models too — both SQL Server Analysis Services (SSAS) and Azure Analysis Services (AAS), Tabular models. A separate mode connects to the AS model and shows exactly which columns, measures and tables are used by downstream consumers — invaluable when migrating off Analysis Services, so you only carry over what’s actually needed.

Find and remove unused measures and columns (the Where-used view) | Find unused objects in Analysis Services models

Column level, end to end — coming September 2026

The piece in active development extends that same column-level precision upstream — through your dataflows back to the source database — so the trail runs unbroken from a warehouse column to the visual that renders it. Today the column-level half (semantic model → visual) already ships; the source-to-model half is what’s being built.

Source-to-visual column lineage (what’s coming)

Which granularity answers which question

Your question	Where to look
What depends on this server, database, or data source?	Lineage tab
Which models or dataflows reference this table or view?	M Expressions search
Where is this column or measure used inside the model and its reports?	Where-used detail
Which source column feeds this exact visual, end to end?	Coming September 2026

Common workflows

Impact analysis before a schema change. Work top-down: open the Lineage tab to see which models hit the source, narrow to the exact table with M Expressions search, then confirm the column-level blast radius inside each affected model with the Where-used view. See Plan a database schema change.
Trace a number back to its source. Start at the report in the Lineage tab and follow it upstream through the semantic model to the data source — no more guesswork about where a figure comes from.
Plan a migration. Use the dependency graph to sequence the move correctly: data sources first, then dataflows, then models, then reports. Lineage surfaces the cross-workspace dependencies that would otherwise break mid-migration.
Decommission safely. Before retiring a data source or a database object, build the complete list of everything downstream so nothing is removed while a report still depends on it.
